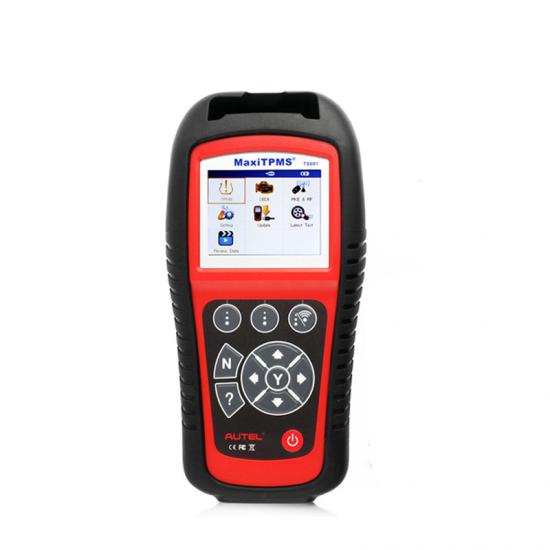

Autel MaxiTPMS TS601TPMS diagnostic and service tool

Autel MaxiTPMS TS601diagnostic and service tool is to diagnose TPMS problems,activate TPMS sensors and reprogram the vehicle's ECU.



  • Type:

    Auto tire pressure tester
  • Brand name:

    Autel
  • Certificates:

    FCC and CE
  • Warranty:

    1 year
  • Update:

    free online update
  • Processor Supported:

    Android
  • Language Supported:

    Multi-languages
  • Voltage:

    9-24V
  • Power:

    6.5W
  • Dimensions:

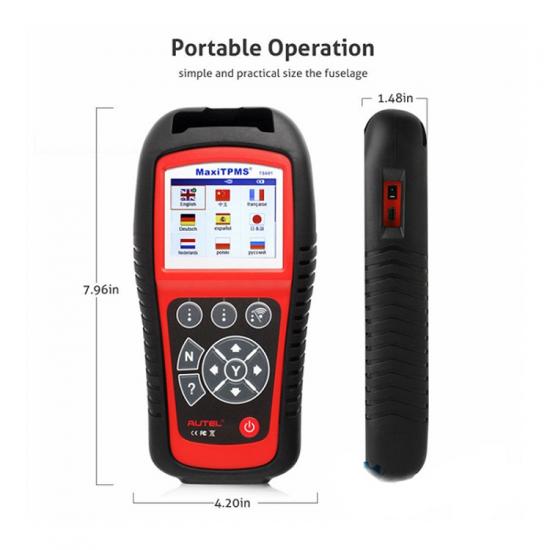

    202.2mm*106.7mm*37.7mm
  • Lead time:

    within 3 days after payment
  • Minimum order QTY:

    1 piece
Products description

Autel MaxiTPMS TS601 is Diagnostic and Service Tool with Free Update Online and Lifetime more powerful than ts501


The MaxiTPMS® TS601 is the most powerful TPMS diagnostic & service tool in the world capable of fully diagnosing TPMS problems as well as activating TPMS sensors and reprogramming the vehicle's ECU. This professional tool is the best choice for tire shops and automotive workshops to perform TPMS service!

 Autel MaxiTPMS TS601 TPMS testor TS601

Autel MaxiTPMS TS601 tire pressure tester

MaxiTPMS TS601 Complete TPMS Functions

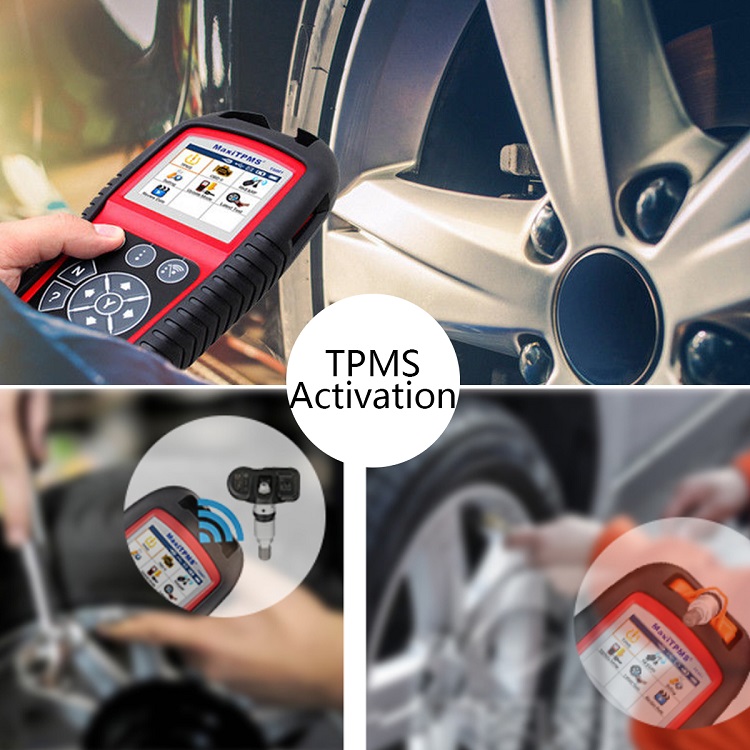

1.Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous 2.or modulated wave signals
3.Receives both 315MHz and 433MHz signals
4.Reads / writes sensor ID from vehicle ECU
5.Reads / clears codes of TPMS system and resets malfunction indicator light
6.Reads activated sensor data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information
7.Reads, records and playbacks TPMS live data, including tire pressure, signal status, temperature, battery status, etc.
8.Retrieves TPMS ECU information
9.Performs actuation tests and special functions
10.Programs vehicle ECU to learn sensor IDs and positions
11.Capable of programming single tires for Ch-rys-ler, Re-nault, and Ci-tro-en
12.Checks Remote Keyless Entry (Key FOB) for transmissions
13.Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process
14.Pre-selection process offers faster activation and diagnostics
15.Provides visual and audible responses to confirm sensors are working properly
16.On-screen code definitions
17.Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions
18.Proper LF signal to prevent being fooled by other RF signals
19.Built-in rechargeable Li-polymer battery
20.Automatic power-off to preserve battery life
21.Ergonomic design features strong housing and protective rubber boot

Autel MaxiTMPS car testing tool


Supported Languages:
English, French, Germany, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian.

Update:Lifetime Free Update Online.


Specifications for Autel Maxitpms TS601

Connectivity

Mini USB 2.0 x 1

Power

3.7 V Li-polymer battery; 2400 mAh

Weight

0.4 kg (0.88 lb.)

Display

TFT Color Display(320*240DPI)

Dimensions (W x H x D)

202.2mm*106.7mm*37.7mm
