Autel MaxiPRO MP808 Key Coding Diagnostic Tool

Bi-Directional Control + Immobilizer Key Coding
18 Special Functions  + Android-based PAD
4.5 hours Battery Life + 1 Year Worry-Free Warranty
Tech Support
  • Type:

    Multimeters & Analyzers
  • Brand name:

  • Certificates:

  • Applicable Models:

    since 1996 to present
  • Function:

    full system
  • Update:

    1 years free update online
  • Processor Supported:

  • Language Supported:

  • Voltage:

  • Power:

  • Memory:

Products description

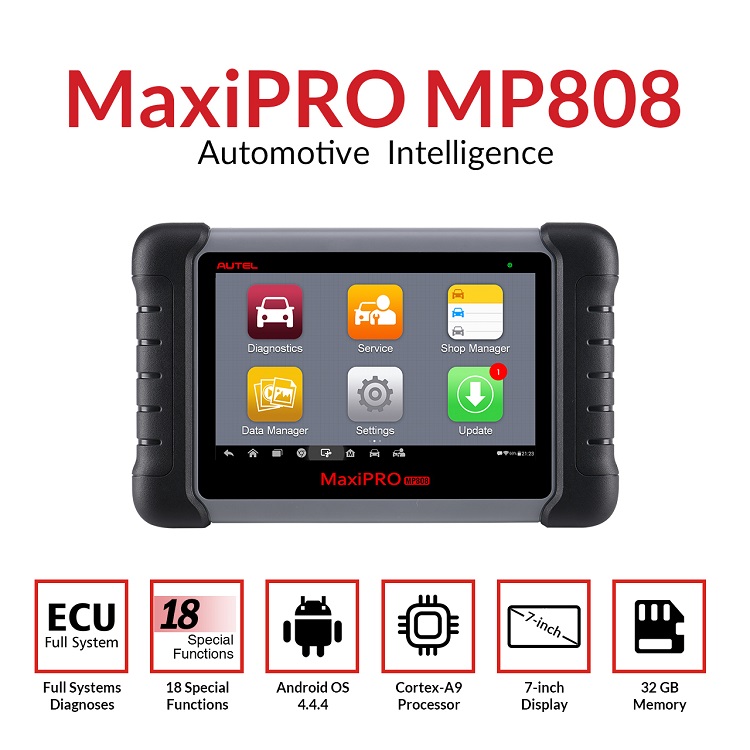

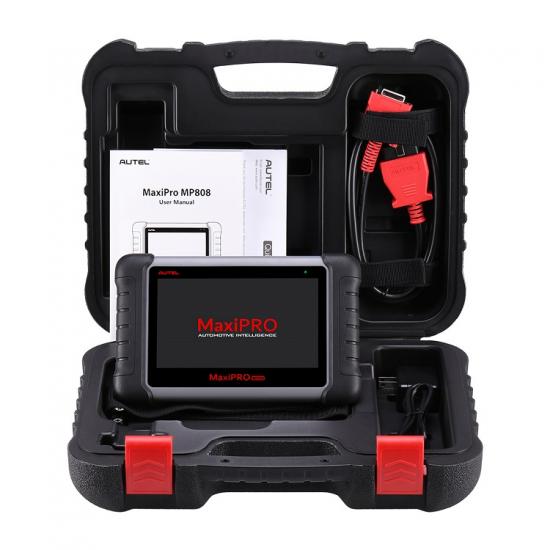

Autel MaxiPRO MP808 OBD2 Professional OE-level Key Coding Diagnostic Tool

Autel Maxipro MP808 key coder


Autel MP808, with powerhouse speed and performance, offers riches of diagnostic features and functions, including OE-level diagnostics, bi-directional control, key coding, special services and more. Booting in seconds and sporting a big 7-inch display, this diagnostic tool provides you a quick way to get you right down to business.
Bullet Points

1.PROFESSIONAL DIAGNOSTICS- The MP808 is a cost-effective OE-level diagnostic tool that supports advanced bi-directional control, key coding and more, saving time troubleshooting and making work easier for professionals performing critical tasks.
2.GREAT USER EXPERIENCE- The diagnostic tool has smart and powerful Android OS and Cortex-A9 processor for great speed and fluidity in everything you do. Rooted in the ease of diagnostics, the scanner can provide you with incredible user experience.
3.PERFECT PROBLEM SOLVING-The scanner has the coverage for all the electronic systems on most commonly-used vehicles, providing you access to the systems for various scheduled service and maintenance, including oil reset, EPB/BMS service, etc.
4.ADDITIONAL FEATURES- As a tablet-based diagnostic tool, the MP808 has several features in addition to the diagnostics and service, including: MaxiFix, Shop Manager and more. The smart AutoVin function offers you a fast way to identify the vehicle.
5.A USER-FRIENDLY SCANNER- Whether you' re a professional mechanic or a DIY enthusiast, this diagnostic scanner may be a nice option for you as it has riches of professional diagnostic functions and has a reasonable price, and provides one-year free update.

Autel Maxipro MP808 full system functions

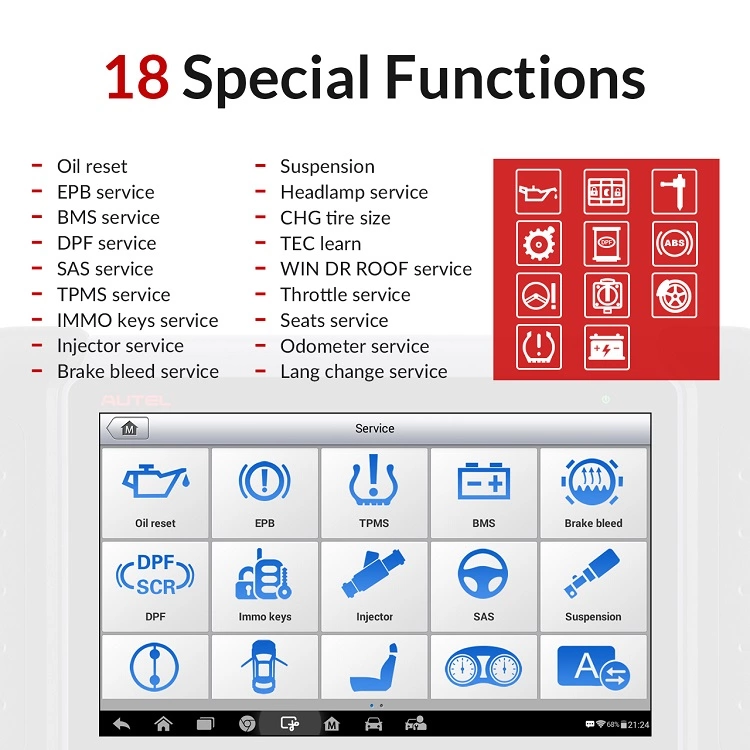

18 Special Functions

1.Oil Service Reset– Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;
2.TPMS Service– Quickly looks up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced;
3.EPB Service– Initializes the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately;
4.ABS/SRS Services– Performs various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System;
5.SAS Service– Performs steering angle adjustment, clears steering sensor fault memory and turns off steering wheel warning light;
6.DPF Regeneration Service– Clears particulate matter from the DPF filter to stabilize the filter performance.
 And much more you will know after you use it.

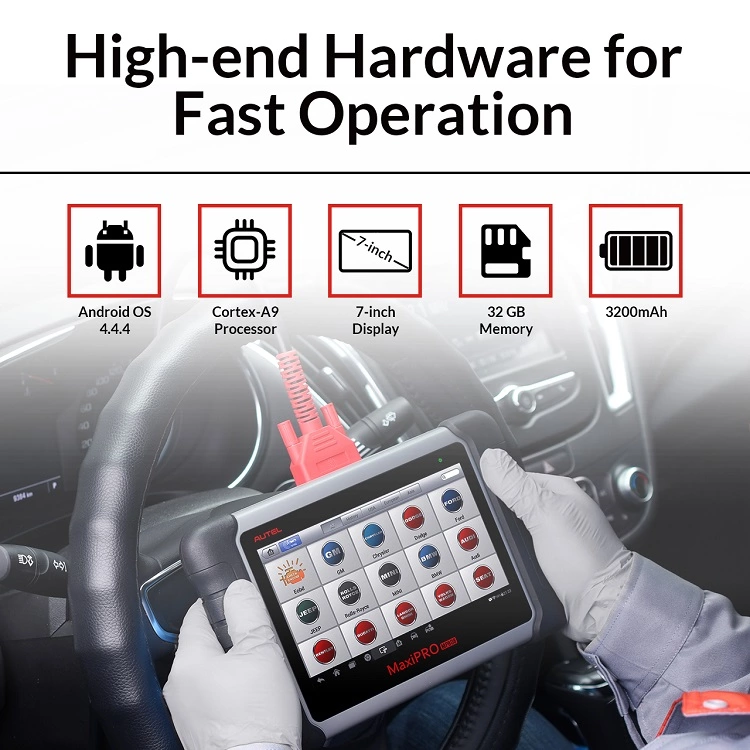

High-end Hardware for Fast Operation

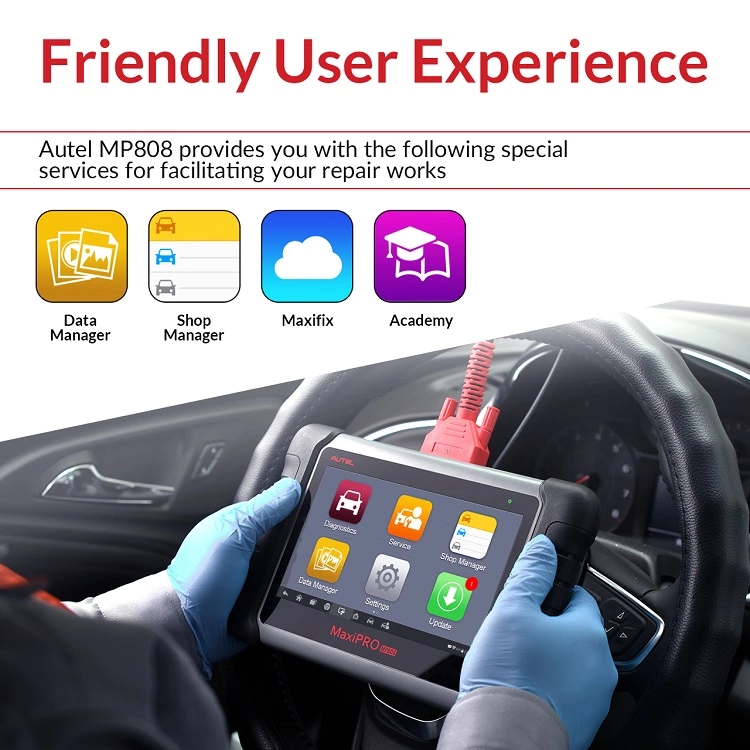

Special service to faciliate your repair works
Data manager,Shop manager,Maxifix and Academy

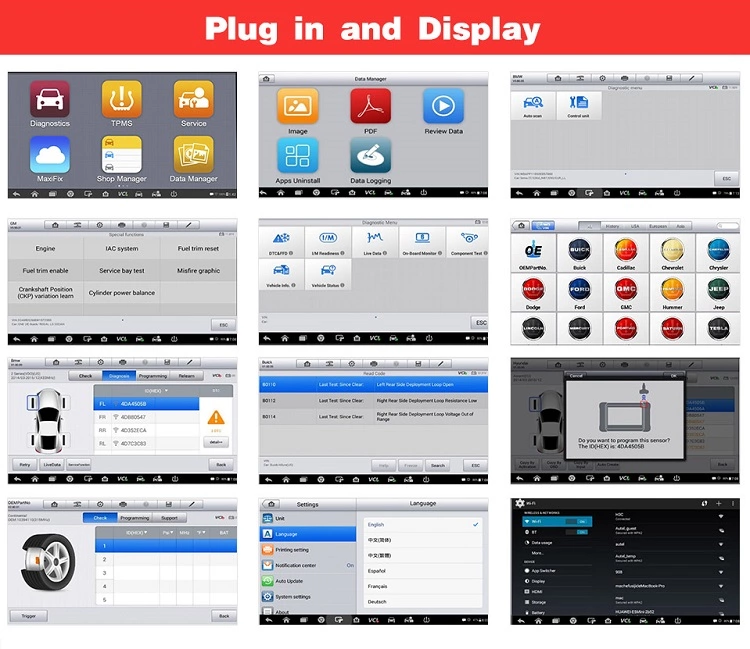

Plug - in and Display
Colorful Display with 7- inch LED Capacitive Touch Screen

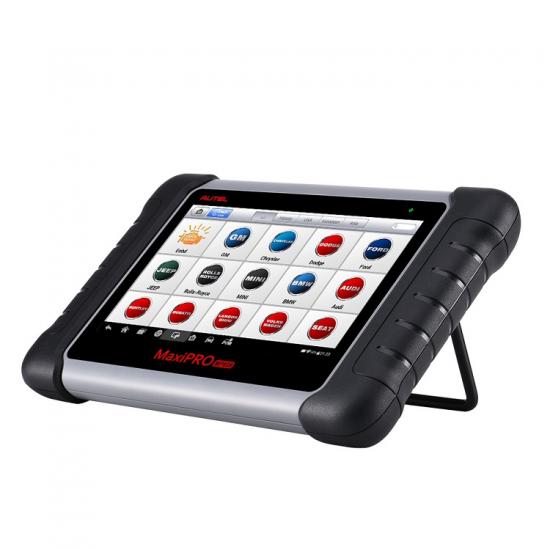

Autel Maxipro MP808 plug-in and display

Operating System
AndroidTM 4.4.4
Cortex-A9 processor (1.5 GHz)
7-inch LCD capacitive touchscreen with 1024x600 resolutions
USB 2.0,Wi-Fi and Micro SD card (supports up to 32GB)
Sensors Ambient light sensor for brightness auto adjust
Audio Input/output

Input: N/A

Output: Beep

Power and Battery

1,3.7 V/3200 mAh lithium-polymer battery,Charges via 5 VDC power supply

2,Charges via 5 VDC power supply

Tested Battery Life
Around 4.5 hours of continuous use
Battery Charging Input
5 V/1.5 A
Power Consumption
500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.
0 to 55°C (32 to 131°F)
Storage Temp.
-20 to 60°C (-4 to 140°F)
Operating Humidity
5% - 95% non-condensing
Dimensions (W x H x D)
237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight
788 g (2.42 lb.)
Supported Automotive Protocols
ISO9141-2, ISO14230-2,ISO15765, K/L-Line,Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

If you are interested in this MaxiPRO MP808 Key Coding Diagnostic Tool.Please feel free to contact us.

Mobile phone or  Whatsapp:0086-13510077612

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
