How to install Autel MX sensor 315 433MHZ,TPMS sensor?

How to install Autel MX sensor 315 433MHZ,TPMS sensor? 2020-05-15

How to install Autel MX sensor 315 433MHZ,TPMS sensor?

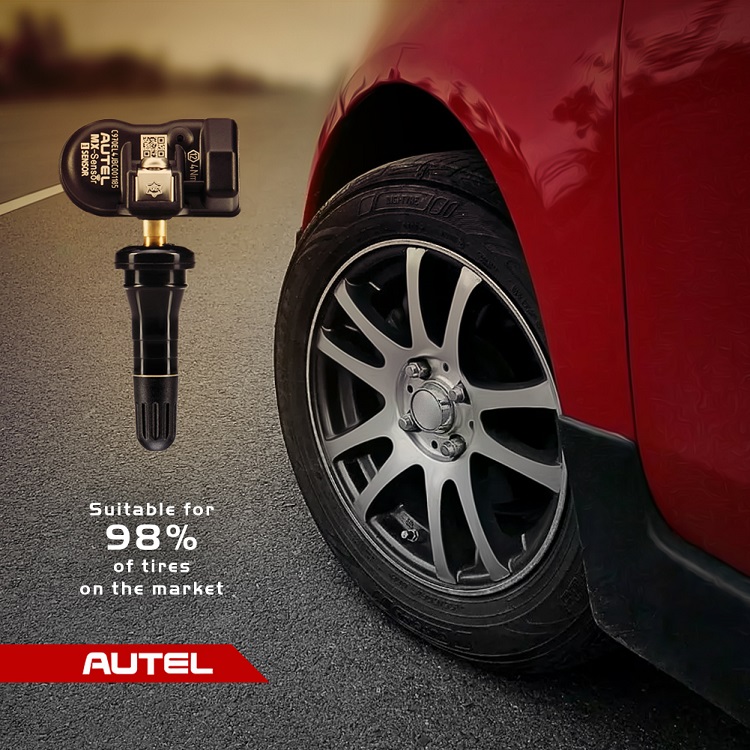

Autel MX sensor 315 433MHZ,TPMS sensor is a tire pressure monitoring sensor (for TPMS) combines both 315 MHz and 433 MHz applications in one sensor to greatly simplify users' inventory management and decrease the investment as well as sales loss. In terms of signal, durability and functionality,it performs like OE sensors.

Some clients will ask how to install the sensor to use it.Here we give the following details.Believe the picture is very clear for you. Please see the following introduction picture for installing Autel MX sensor 315 433MHZ,TPMS sensor

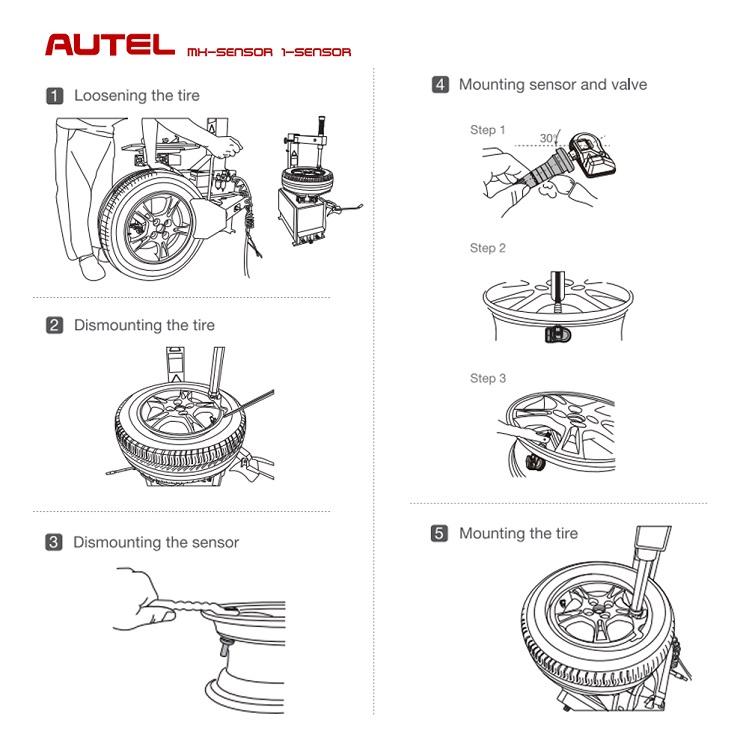

install Autel MX sensor 315 433MHZ TPMS sensor

[Installation Process for Rubber Stem (Screw-In)] That is to say Autel MX sensor 315 433MHZ,TPMS sensor

1.Loosening the tire: Remove the valve cap and core and deflate the tire. Use the bead loosener to unseat the tire bead.

2.Dismounting the tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to dismount the bead.

3.Dismounting the sensor: Depress the Press button on the sensor body. Carefully pull the sensor body straight back off the valve. Cut the rubber bulb and attach a standard tire valve extractor to the valve. Remove the valve from the rim by pulling through the rim.

4.Mounting sensor and valve:

Connect the sensor body and valve stem at a suitable angle (normally use the maximum angle of 30 degrees) and tighten the screw. Apply tire soap or lube solution to the rubber valve stem.
Line the sensor up with the rim hole and attach a standard tire valve extractor to the end of the valve.
Pull the valve stem straight through the valve hole. Note the rubber bulb of the valve resting against the rim.

5.Mounting the tire: Place the tire on the rim, make sure that the valve faces the separation head at an angle of 180 degrees and mount the tire over the rim.

At last let's tell you that Autel MX sensor 315 433MHZ,TPMS sensor [315 & 433MHZ 2 in 1 Sensor] is easy to use and has effective necessity for any shop performing TPMS repairs, the Autel MX TPMS sensor has full coverage over 98% of all OE sensors on the market, to support up 90% of North American, European and Asian brands. On the shop level, needing only 1-Sensor to service nearly every TPMS equipped vehicle which means lower repair cost and higher install efficiency.

Autel MX sensor 315 433MHZ TPMS full coverage of car brands

If you are interested in this Autel Mx sensor 315 433MHZ Common Rubber Valve Stems for Tire Pressure Monitoring Systems TPMS,please feel free to contact us.
