Autel MaxiFlash Pro J2534 ECU Programming tool

MaxiFlash Elite Autel MaxiFlash Pro J2534 ECU Programming Tool Works with Maxisys 908/908P



  • Type:

    Autel ECU programmer
  • Certificates:

    CE
  • Applicable Models:

    Universal Cars
  • Function:

    ECU programming
  • Warranty:

    1 year
  • Version:

    Autel Maxiflash Pro J2534
  • Connection Method:

    OBD2 cable,WIFI and USB
  • Voltage:

    12V
  • Lead time:

    within 3 days after payment
  • Minimum order QTY:

    1 set
Products description

Autel MaxiFlash Pro J2534 ECU Programming Tool Works with Autel Maxisys 908/908P.


Features and Functions of Autel MaxiFlash Pro J2534 ECU Programming Device
 1. Fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards
 2. Performs the standard PassThru J2534 functionality
 3. Compatible with Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM diagnostic tools
 4. Fast performance ensures quickly reprogramming even the newest vehicle controllers
 5. Wireless with advanced networking functions
 6. Built-in wireless and data storage
 7. Rugged design capable of withstanding harsh environments
 8. Upgraded via internet

Autel Maxiflash Pro J2534 ECU tool

Attention please!
1. MaxiFlash Pro is better to be worked with Autel Maxisys 908/ 908P.Only his way can  it support more cars.
2. If you use it alone, it can only support Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM diagnostics (Need to Get the Software by Yourself)

Autel Maxiflash Pro J2534 ECU programming for Maxisys 908 and 908P

Autel MaxiFlash Pro J2534 ECU Programming Device Specification:
Input Voltage Range:  6VDC to 26VDC
Supply Current: 350mA @ 6VDC 200mA @ 12VDC 110mA @ 24VDC
Operating Temperature: 0°C to +60°C (ambient)
Storage Temperature:  -65°C to +100°C (ambient)
Dimensions: Length: 183.8 mm (7.23") Width: 135.5mm (5.33") Height: 41 mm (1.6")

Autel MaxiFlash Pro J2534 ECU Programming Device

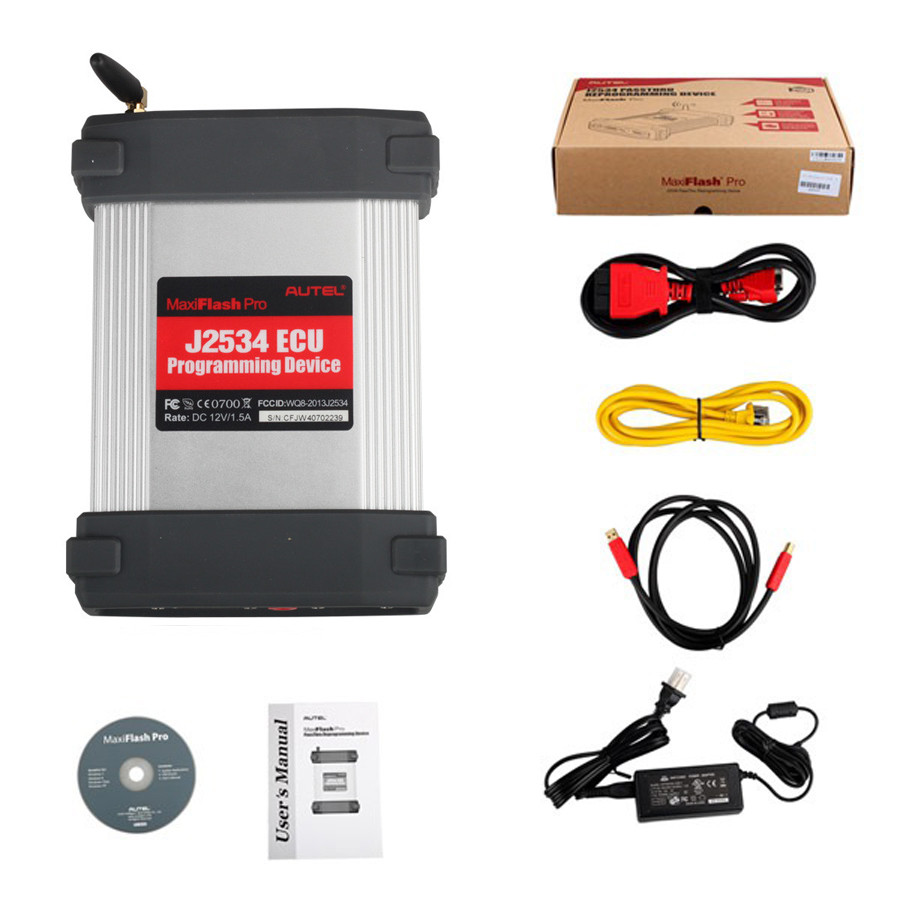

Package included the following items.

Item Name

Quantity

J2534 ECU Programming Device

1pc

MVCI to OBDII Cable

1pc

Wi-Fi Antenna

1pc

USB Cable

1pc

OBDII 16PIN Cable

1pc

Ethernet Serial Cable

1pc

AC/DC External Power Adapter

1pc

User's Manual

1pc

CD

1pc
