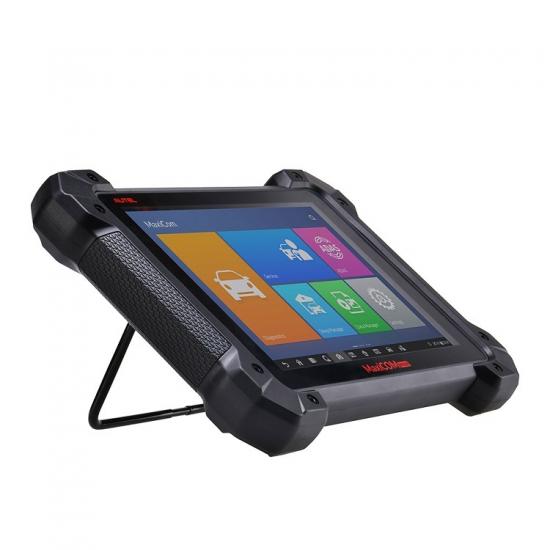

Autel MaxiCOM MK908P ECU car programming tools

Autel MaxiCOM MK908P, the upgraded version of MS908P, is a professional diagnostic tool with a 10.1-inch touch screen and advanced hardware from the Sam-sung Exynos hexa-core processor and Android 4.4.2 OS for quick and comfortable car diagnostics.

  • Type:

    Autel
  • Applicable Models:

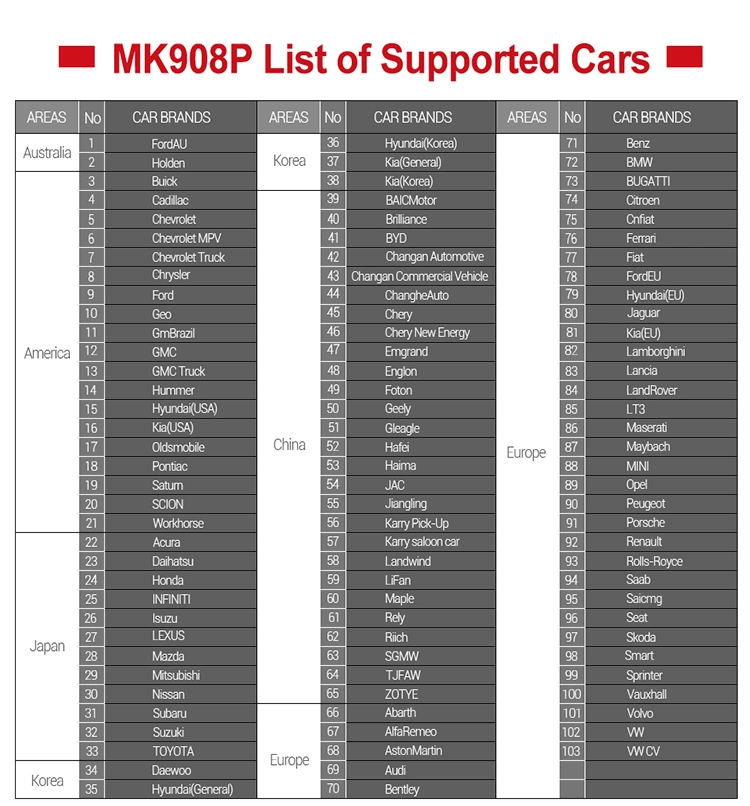

    Extensive vehicle coverage
  • Function:

    ECU Programming
  • Operation System:

    AndroidTM 4.4.2
  • Processor Supported:

    Sam_sung Exynos hexa-core Processor
  • Voltage:

    12V
  • Power:

    6.5W
Products description

Offering comprehensive OE-level diagnostics, ECU coding and B-M-W/Ben-z ECU programming, the MK909P is an automotive diagnostic tool for mechanics to troubleshoot the warning lights and fix the vehicle control modules’issues.

Features of Autel MaxiCOM MK908P as ms908p:
J2534 ECU Programming:

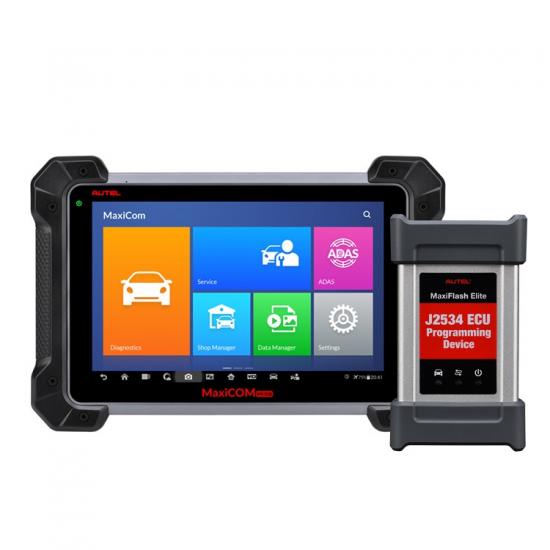

The diagnostic tool comes with a J2534 ECU programming tool (also used as a V-C-I box) that is a SAE J2534-1 & -2 compliant pass thru reprogramming interface device. Using the updated OEM software, it is capable of helping B-M-W and Ben-z users replace the existing software/firmware in the Electronic Control Units (ECU), program new ECUs and fix software-controlled drivability?issues and emission issues. It supports BT and USB communications and can transmit vehicle data to the MaxiCOM display tablet with or without a physical connection.

Autel MaxiCOM MK908P

There are 3 indicators on the J2534 ECU programming device:
1,Vehicle LED – Flashes green when communicating with the vehicle’s system
2,Connection LED – lluminates solid green when properly connected with the display tablet via the USB cable; Illuminates solid blue when connected with the display tablet via wireless (BT) connection
3,Power LED – lluminates solid green when powered on: Flashes red when system failure occurs: lluminates amber automatically at power up when the device is performing self-test procedure

Full System Diagnostics:
Simply accessing the diagnostic modes via AutoVin or Control Unit, and you’re able to perform diagnosis over all the systems on the vehicle’s ECU in order to locate fault systems and retrieve DTCs.
ECU Information – provides the retrieved ECU information in detail.
Read Codes – displays detailed information of DTC records retrieved from the vehicle control module.
Erase Codes – erases DTC records and other data from the ECM.
Live Data – retrieves and displays live data and parameters from the vehicle’s ECU.
Active Test – provides specific subsystem and component tests.

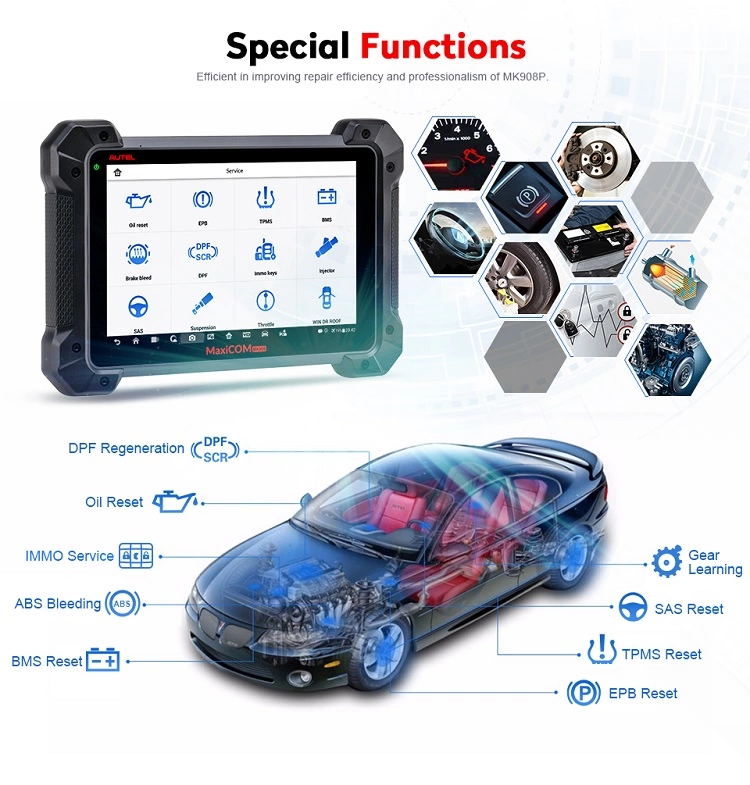

Accesses the Special Functions:
The diagnostic tool is specially designed with the Service section to provide you with?quick access to the vehicle systems for various scheduled service and maintenance performances.?It provides component adaptation or variant coding functions for custom configurations, and also allows you to?reprogram adaptive values for certain components after making repairs.


The most commonly performed service functions include:
---Oil Reset Service: Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.
---EPB Service:Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes?after disc or pad replacement, etc.
---SAS Service:Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
---DPF Service: Allows you to carry out numerous functions to the Diesel Particulate Filter system.
---TPMS Service:Allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
---IMMO Service:Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.

Operating System AndroidTM 4.4.2, KitKat
Processor Samsung Exynos hexa-core Processor(1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory 2GB RAM & 64GB On-board Memory
Display 10.1-inch LED screen with 1920x1200 resolutions

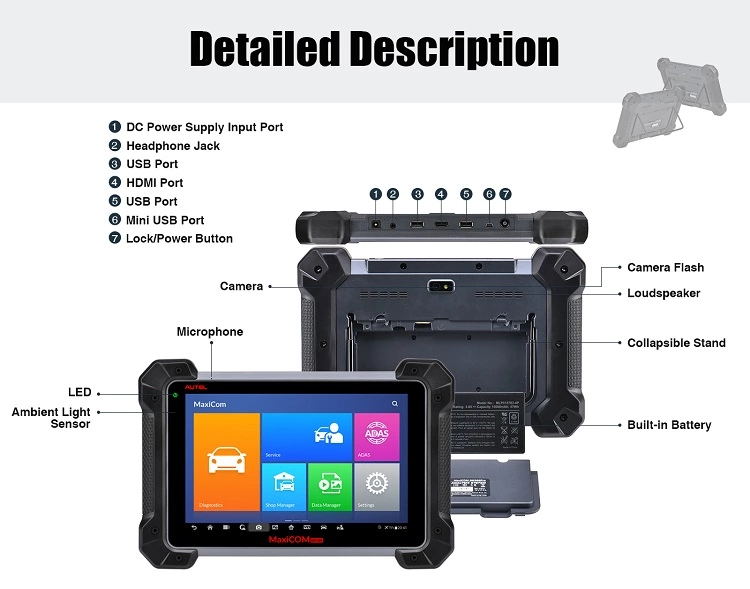

Connectivity Wi-Fi (802.11 a/b/g/n/ac); USB2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI
Camera (rear) 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone; Dual Speakers; 3-Band 3.5 mm stereo/standard headset jack; Power and Battery; 15000 mAh 3.8 V lithium-polymer battery; Charging via 12 V AC/DC power    supply with the temperature between 0°C and 45°C
Input Voltage 12 V (9-24 V)
Power Consumption 6.5 W
Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Housing Strong plastic housing with protective rubber boot
Dimensions (WxHxD) 312mm (12.28”) x 208mm (8.18”) x 36mm (1.41”)
Weight (NW) 1.48kg (3.26 lb)
Protocols ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-speed, Middle speed, Low speed and Singlewide CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

Autel MaxiCOM MK908P

Coding:
The Coding function is used to re-flash the vehicle control modules, it allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts.


The Differences Between MK908P and MS908P:
The MK908P is an upgraded version of MS908P, and the difference between them is that MK908P is equipped with more advanced hardware.
---Processor: The MK908P is processed by the powerful Sam_sung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) while the MS908P is using the Sam_sung Exynos Quad-Core Processor 1.4GHz.
---Operating System: Diagnostic scan tool MK908P features Android4.4.2, KitKat operating system that is upgraded from Android 4.0, Ice Cream Sandwich.
---Memory: The MK908P is equipped with 2GB RAM & 64GB on-board Memory, but MS908P only has 32GB on-board memory.
---Screen Size & Pixel: The Automotive diagnostic scanner MK908P features 101.1 inches LED screen with 1920*1200 resolutions that provides?a better user experience than MS908P’s 9.7 inches screen with 1024*768 resolutions.
---Camera: The camera of MK908P is designed to provide a more?detailed images?using 8.0 Megapixel, AF with Flashlight.
---Battery Capacity: For a tablet diagnostic tool that is equipped with built-in battery, the battery life greatly affects the integrity of the diagnosis and the user experience. Compared to the MS908P, the MK908P extends the usage time by increasing battery capacity by 4000mAh.

Additional Features and Functions:
 ---To well serve the users, the diagnostic tool is equipped with rich?array of features and functions in addition to the Diagnostic and Service functions, including Remote Desk, MaxiFix, Shop Manager, Digital Inspection,?MaxiScope, etc.
---Remote Desk: With the simple, fast and secure remote control interface, you can receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your MaxiCOM tablet on their PC via the TeamViewer software.
---MaxiFix:?This is an additional feature in the cloud which enables users to network and access a database of procedures, repair and diagnostic tools. You are able to interact with fellow technicians and share knowledge via MaxiFix.
---Digital Inspection & MaxiScope: The diagnostic scan tool can also be used in conjunction with the automotive oscilloscope Autel MP408 to perform electrical and electronic circuit testing and monitor signal activity, and it also supports performing a close vehicle inspection with the Autel digital inspection camera MV105/MV108.

Software Update:
The Autel company frequently releases new versions of the software and engine code library that makes?it compatible for newly launched vehicles. If any “Unknown” or “New Vehicle Found” error is reported, the custom software updates are made available to the users in time.


Multiple Languages (13):
English, Chinese Traditional, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Italian, Russian.


Warranty:
12-month warranty for any quality problem
Specifications of Autel MaxiCOM MK908P :


Specifications
