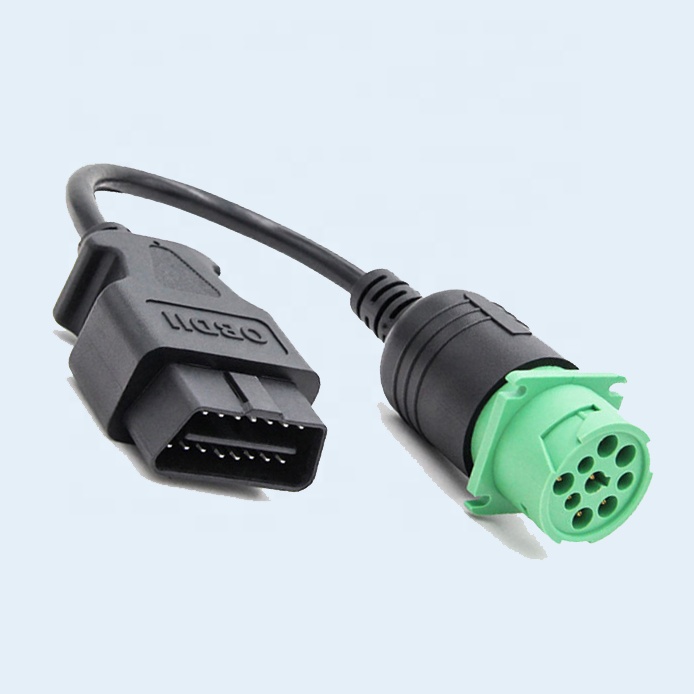

Heavy Truck Male OBD2 16Pin To Male J1939 9Pin Cable

This is a male OBD2 cable 16pin to male J1939 9Pin cable.



  • Type:

    OBD2 16pin to J1939 9pin cable
  • Brand name:

    OBD2 16pin To J1939 9pin Cable for Cummins
  • Warranty:

    2 years
  • Connection Method:

    Cable
  • Voltage:

    12/24V
  • Power:

    12W/24W
  • Material Type:

    Plastic
  • Color:

    Black and red
  • Lead time:

    within 3 days after payment
  • Minimum order QTY:

    1 piece
Products description
Heavy Truck Male OBD2 16Pin To Male J1939 9Pin Cable For Cummins

Male OBD2 16pin to male J1939 9pin cable for Cummins


Type

J1939 Cable

Pins Material

Nickel Plating/Gold-Plating

Plug Material

PA66+GF (ABS+PC)

Working Temperature

-20°C~80°C

Length

100mm Or Customized

Color

Black/Green

Samples Price

Please Contact Us

Specific Shipping Cost

Please Contact Us

Heavy duty male OBD2 16pin cable to male J1939 9pin cable


P1 OBDII M

TO

P2 J1939 M

1



H

4+5



A

6



C

11



J

12



G

13



F

14



D

15



E

16



B

OBD2 16pin to J1939 9pin cable for Heavy Duty


Product Description
1,Materials of connector and cable comply with UL and ROSH standards;
2, Cable: Black jacket, 0.3M/0.5M/1M or be customized;
3, Pin-out information, cable specification and plugs can be customized;
4, Heavy-duty materials and quality craftsmanship give the cable superior flexibility and durability;
5, We have a variety of J1939 cables. If want to have samples,please contact us freely
