2018 Newest and 100% Original Foxwell DPT701 Digital Common Rail High Pressure Tester
DPT701 Digital Pressure Tester Features and Benefits:
1. Stores maximum pressure value
2. Environmental pressure adjustment
3. Wireless data transmitter sends test results to computer for review and printing
4. Detachable sensor
5. Large easy-to-read backlit LCD
6. Checks battery status continuously to avoid wrong measures
7. Multilingual support- English, French, German, Spanish and more
8. Extremely easy to use with user friendly menu
DPT701 Digital Pressure Tester Complete Test functions
---to test Oil pressure
---to test Petrol compression
---to test Diesel compression
---80 bar manometer
---to test Petrol injection pressure
---to test Low pressure common rail
DPT701 Digital Pressure Tester Specifications:
Sensor output: Ratiometric, 0.5/4.5V DC at 5V DV excitation
Sensor FS.: 80 bar / 1160 psi
Resolution: 1 bar/ 1psi
Proof pressure: 150% FS
Battery type: 9V
Display: Backlit 64x128 pixels graphic LCD
Data transmission interface: wireless module
Adapters included: 6mm and 8mm
Working Temperature: 0 to 60℃ (32 to 140℉)
Storage Temperature: -20 to 70℃ (-4 to 158℉)

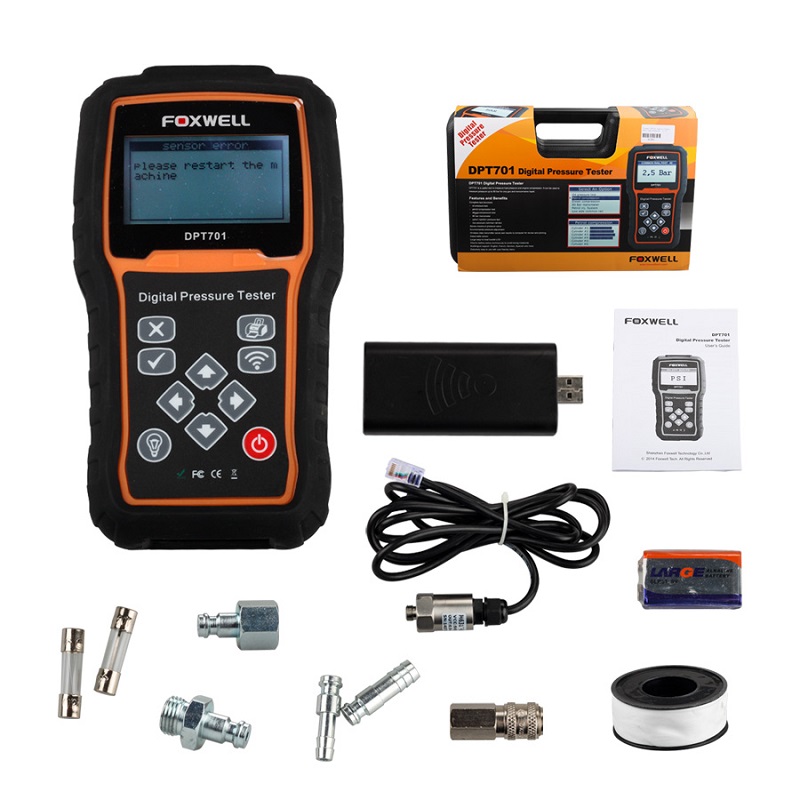

DPT701 Digital Pressure Tester Package List:
1pc x DPT701 Digital Tester
1pc x User’s guide
1pc x Blow molding case
1pc x Flexible high pressure hoses M12*1.5/ M12*1.5
1pc x Flexible high pressure hoses M12*1.5/ M14*1.5
1pc x metal tube M12*1.5/ M12*1.5
1pc x High pressure “T” adaptor
1pc x High pressure sensor
1pc x Vehicle battery clip
1pc x 2-pin connection cable
1pc x Wireless data receiver
