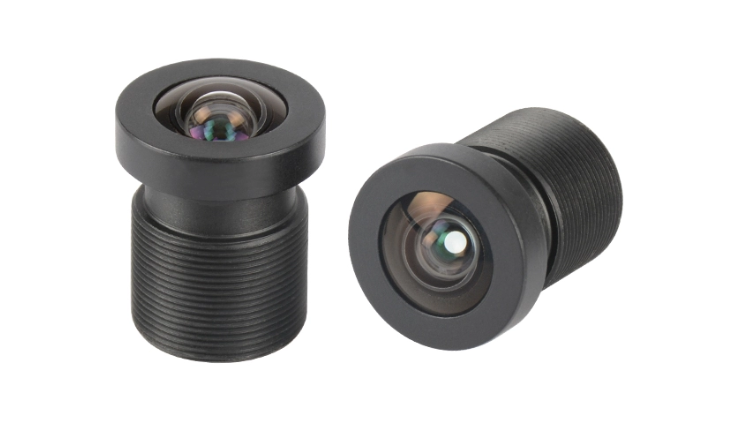

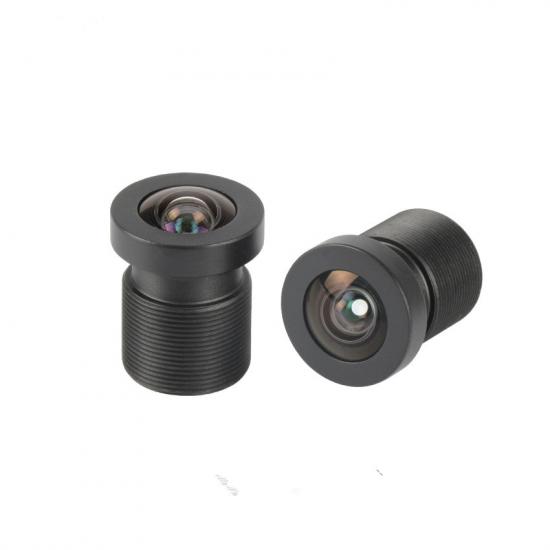

CAG1326 1/2.3" 3.56mm board lens

OEM board lens Sensor size1/2.3",Focal Length 3.56mm

F/No:F2.5 105 degrees 7E 4k 16MP board lens

  • Sensor Size:

    1/2.3
  • Focal Length:

    3.56 mm
  • F/NO.:

    2.5
  • Structure:

    7E
  • Resolution:

    16MP
  • TTL:

    22.8 mm
  • EFL:

    3.56mm
  • FOV:

    D=105°,H=88°,V=69°
  • Distortion:

    <-16.5 %
Products description

OEM 1/2.3" 3.56mm F2.5 105 degrees 7E 4k 16MP board lens

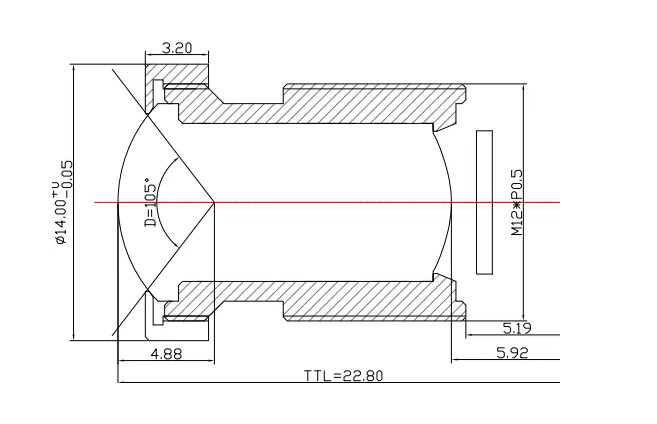

M12 mount board lens

EFL(mm)
3.56
F/NO(Max)
2.5
FOV(°)
D=105°, H=88°, V=69°
Distortion
<-16.5 %
Structure
7E
Mounting
M12*0.5P
TTL(mm)
22.8mm
Diameter
Φ14
Sensor Size
1/2.3"
Materials
Glass and Plastic

We accept OEM order.We can design and manufacture board lens according your requirements.

board lens manufacturer

Please feel free to contact us.Thanks!

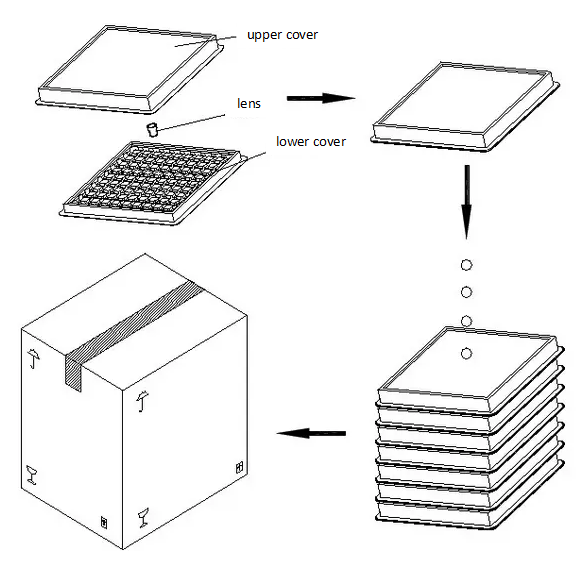

About Packing


leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
